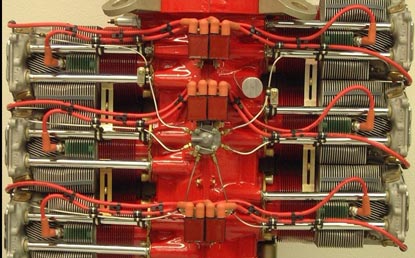

Ignition coil positioning and high tension lead routing for a Dual Plasma CDI.
Pictured here on an IO-540 by Performance Engines.

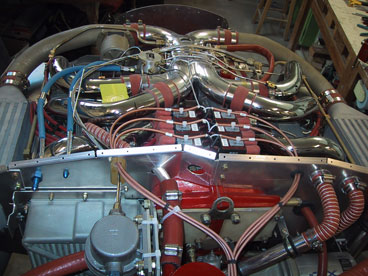

One location to mount the ignition coils on a Continental TIO-550 with Dual Plasma CDI.

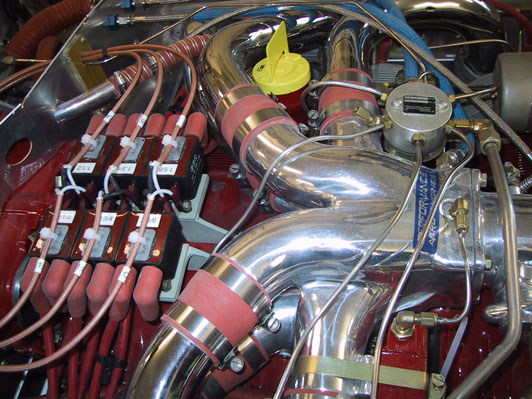

Ignition coil mount and wire routing for a dual PLASMA CD installation on a Continental TIO-550.  (close-up of the above photo)

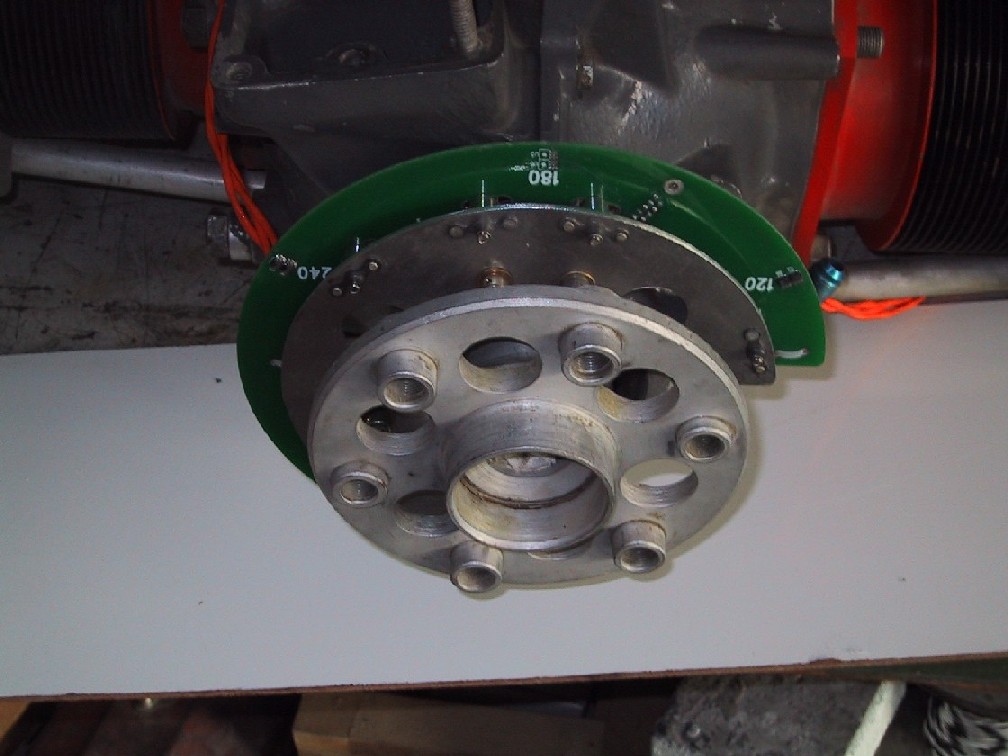

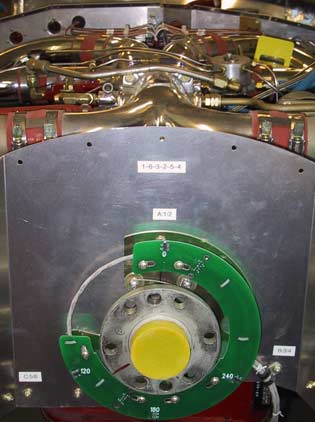

Direct Crank Sensor mounting bracket and circuit board installation on a Continental TIO-550.

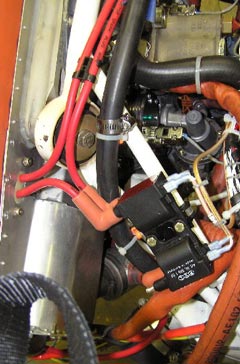

Another great place to install the ignition coils is on the motor mount.
Scott Krueger's installation is pictured above.

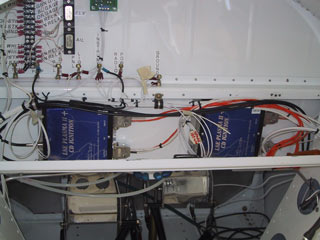

RV-8 ignition module installation.


Typical PLASMA CDI installation in an RV-8, courtesy of Ray Findly.
