PLASMA III
CAPACITIVE DISCHARGE IGNITION SYSTEM

Plasma III with Hall Effect Module

Plasma III CDI with Mini Sensor

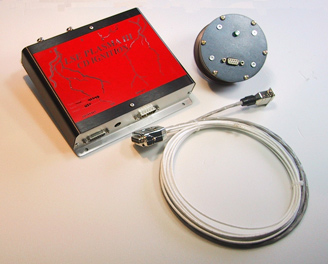

Plasma III CDI with Hall Effect Module



Light Speed Engineering has introduced a new ignition system to its line of products.  The new Plasma III Capacitor Discharge System is the latest high performance ignition for all 4-cyl and 6-cyl aircraft engines.  Its long duration spark and optimized timing curve makes more horsepower and improves fuel efficiency- at all altitudes. Other benefits include quick starts, reduced maintenance, light weight, lower EGT’s and up to 20% more range.  As with all LSE ignitions, RPM and manifold pressure inputs are used for our proprietary timing curves. The Plasma III is also capable of displaying the current timing advance, manifold pressure and rpm on an optional lightweight LCD display.

The Plasma III can easily replace one or both magnetos, making your engine run better under all conditions. Precise crankshaft position and RPM is provided by the mini sensor installed near the prop flange (available for 4 and 6-cyl engines) or by the accessory case mounted hall effect sensor module (available for 4-cyl Lycoming type engines only).

For detailed information on the output capabilities available in the Plasma III, please refer to the PLASMA II PLUS page.  More information on the optional pre-wired LCD Display and rotary switch is available at this Display Information link.

Single System Prices (replaces one magneto)

Plasma III 4 cyl- Mini Sensor

$1,535

Plasma III 4 cyl- Hall Effect Module

$1,750

Plasma III 6 cylinder- Mini Sensor

$1,975

Spark plugs and bushings included. Prices and

specifications subject to change without notice.

CA residents add 7.5% sales tax. Shipping not

included. Visa & Mastercard accepted.

The accessory case driven Hall Effect Sensor Module can be installed on 4 cylinder engines only.  The Mini Sensor is mounted near the flywheel for crank position information. All 6 cylinder engines use the Mini Sensor.

On all Turbo and Super-Charged ignition systems, add $125 per ignition system.
On all Franklin and Continental engine ignition systems, add $195 per engine installation.
